Name: High Speed Nonwoven Fiber Carding Machine 2500mm For Polyester
Brand: HONGYI
Price: 95000 USD

Brand Name : HONGYI

Model Number : HYSL

Certification : CE/ISO9001

Place of Origin : CHINA

MOQ : 1 set

Price : USD 95000 per set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 3-5sets per 100 days

Delivery Time : 100 days

Packaging Details : Nude, Film

Material : Steel

Suitable material : polyester, cotton, wool, waste fiber

Width : 2500mm

Capacity : 800kg/h

Out-put speed : 60m/min

Contact Now

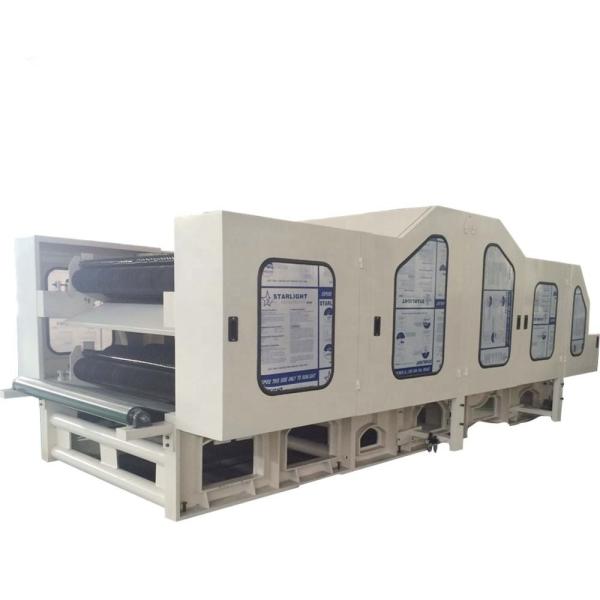

High Speed Nonwoven Fiber Carding Machine

Carding machine is very important solution for fiber process.
To meet different needs, the single- or double-cylinder structure is all available.
Also different capacity is applicable depend on different working width and sizes.

Main Technical parameters:

SPECIFICATIONS FOR CARDING MACHINE
Main performance parameters	Fibers	Polyester fiber, PP fiber, wool,viscose, glassfiber,
	Working width	1500-3000MM
	Weight range	10-80gsm
	Production speed	0-90m/mim
	Roller material	Alloy steel
	Roller diameter	850/1230/1500mm
	Structure	1Cylinder+2doffer+4random rollers 2Cylinders+2doffer+4random rollers
	Output Capacity	100-500kg
	Carding wire	Geron brand

High Speed Nonwoven Fiber Carding Machine 2500mm For Polyester

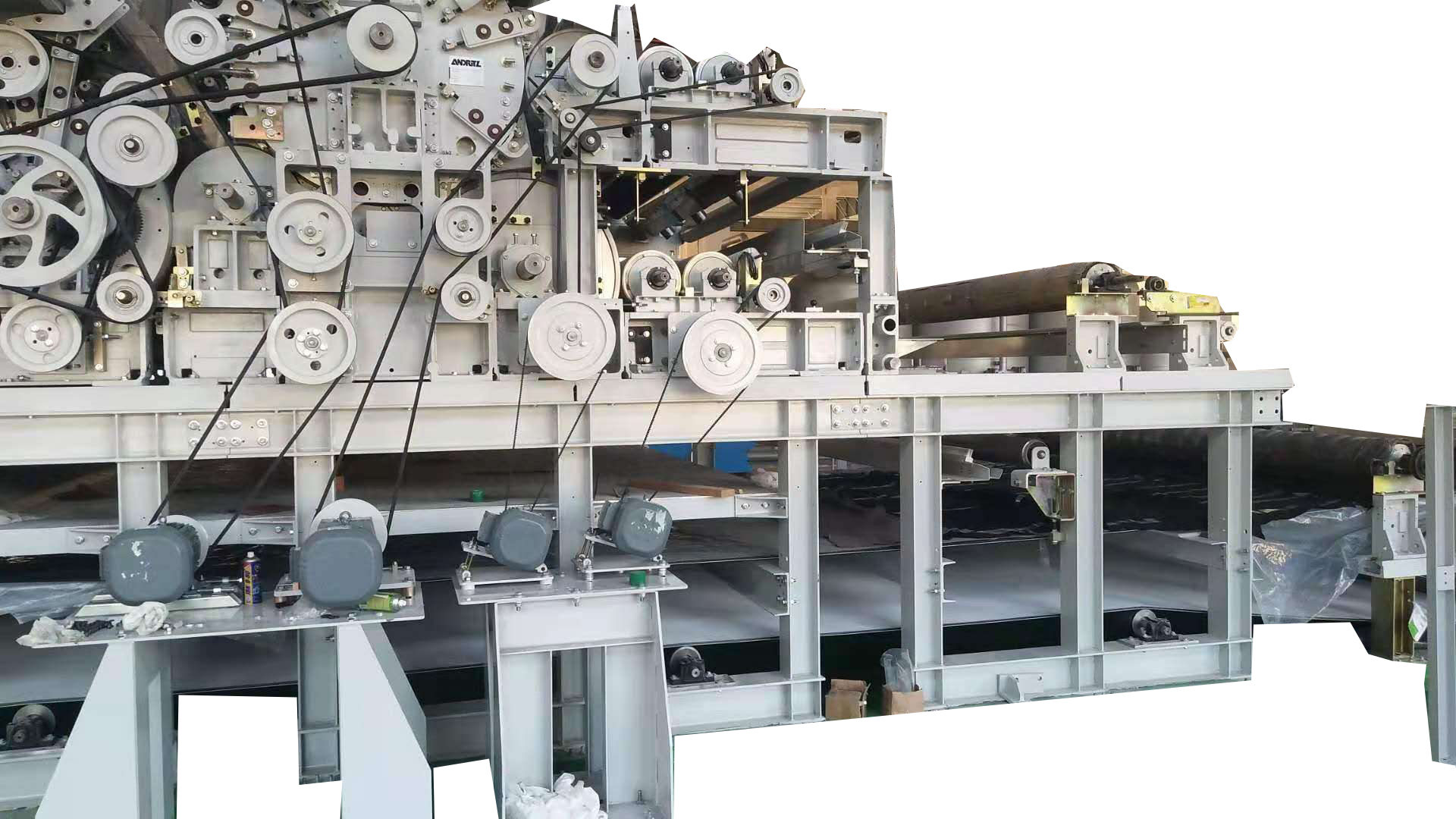

Structures:

Horizontal feeding lattice is PVC lattice, with pressing roller for evenly feeding.

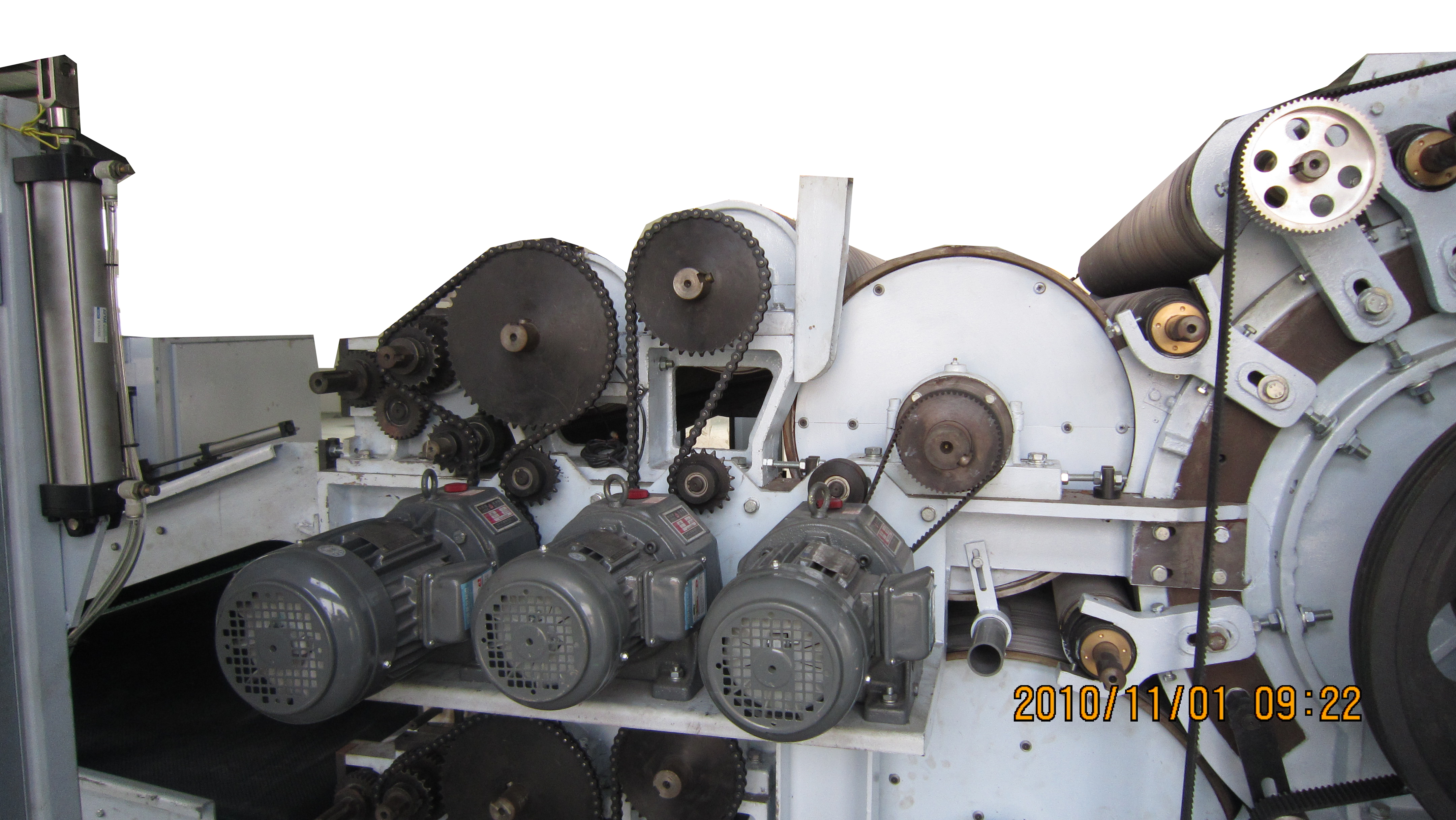

Four rollers for feeding with diameter φ90mm, anti-metal protection device is used at the material input of machine, which could test the metal and has auto-stop warning.
There are 5 suits of working roller and stripping roller on cylinder to card fiber completely and form web evenly.
Edge-suction system is equipped and the dust particles will be transferred to special dust cage.
Walking platforms are placed on two sides of machine for maintenance. Machine Safe guard cover is transparent organic glass.

High Speed Nonwoven Fiber Carding Machine 2500mm For Polyester

Trading information:

Trade terms	FOB Shanghai
Lead time	100 days
Payment term	30% T/T advance, 70% will be paid off before delivery.
Warranty	1 year.
Installation and debugging	The seller will arrange 2-3 engineers for installation and debugging. The buyer will be responsible for round toickets, accomdation, transportation, insurance and other relative items for engineers. The charge for engineers will be USD180 per day per person.

High Speed Nonwoven Fiber Carding Machine 2500mm For Polyester
